Módulo Controlador DC p/ Motores, Luzes

§·especificações

Características

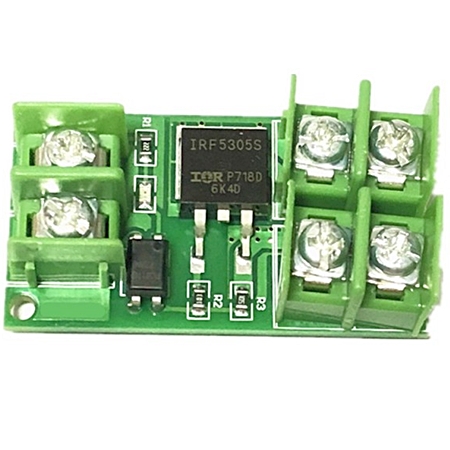

1: FET module, the input and output are completely isolated. 2: Signal trigger terminal: digital high and low level. Can be connected to the microcontroller IO port, PLC interface, DC power supply, etc. 3: Input signal voltage: 3V~24V current: about 5ma. 4: The output can control high-power equipment, motors, bulbs, LED strips, DC motors, micro pumps, solenoid valves, etc. 5: Output controlled voltage: 5V~36V. Current: less than 5A, more than 5A need to add heat sink, the maximum can not exceed 20A. 6: Using the original F5305S power FET, you can input PWM, control motor speed, brightness of the lamp, etc.
